Week2: Network Performance

호프 2023. 10. 20. 03:26

Delay, Loss, Throughput in Networks

Delay in networks

Packets queue in router buffers

  • When packet arrival rate to link (temporarily) > output link capacity -> packets queue, wait for turn

d = $d_{proc}$ + $d_{queue}$ + $d_{trans}$ + $d_{prop}$ -> 한 라우터를 거쳐갈 때마다

  • $d_{proc}$: processing delay, determine output link by forwarding table lookup, 무시해도 되는 정도
  • $d_{queue}$: queueing delay, tme waiting at output link for transmission, 계산 어렵
  • $d_{trans}$: transmission delay, $L/R$ where L = packet lengths(bits), R = link bandwidth (bps)
  • $d_{prop}$: propagation delay, $d/s$ where d = length of physical link, s = propagation speed
    • time for 1 bit to travel 1 link

E2E (end-to-end) Delay for 1 pkt = $(d_{trans} + d_{prop}) * # of hops in E2E path$

E2E Delay for whole msg = $E2E Delay for 1 pkt + d_{trans} * (n-1)

$D_{trans} < D_{prop}$

  • 1st bit doesn't arrive at next router when all bit of pkt is transmitted
  • ex. Satellite link network

$D_{trans} > D_{prop}$

  • 1st bit arrive at next router befoe all bit of pkt is transmitted
  • ex. 우리가 쓰는 대부분의 ground network

Traffic Intensity (TI) at Output Queue

  • TI = $La / R$ where R = link bandwidth (bps), L = pkt length (bits), a = average pkt arrival rate
  • TI < 1, 1에 가까워질 수록 queueing delay 커짐
  • In reality, burst traffic intermittently arrives at queue -> Variations in pkt arrival rate

"Real" Internet delays and routes

  • Traceroute program (= tracert): 인터넷을 통해 거친 경로를 표시하고 그 구간의 정보를 기록하고 인터넷 프로토콜 네트워크를 통해 패킷의 전송 지연을 측정하기 위한 컴퓨터 네트워크 진단 유틸리티



Packet Loss

  • In Packet Switching, there is no resource reservation and they have finite buffer -> Packet loss at output buffer can occur.
  • Packet arriving to full queue is lost (dropped)



Throughput

  • E2E path (multiple link)로 측정: 단위 시간 당 end host에서 end host로 전송되는 bit 수
  • rate (bits/time unit) at which bits transferred btw sender / receiver
  • (BW or Data rate or Transmission rate R) / over 1 link
  • Bottleneck link: link on e2e path that constrains end-end throughput
    • $min(R_i) where i in the e2e path$

Protocal Layers

Protocol Layers

Why Layering?

  • dealing with complex systems
    • modularization eases maintenance, updating of system
    • change of implementation of layer's service transparent to rest of system
  • Cons
    • one layer may duplicate lower-layer functionality
    • cross-layer protocol -> violate layering

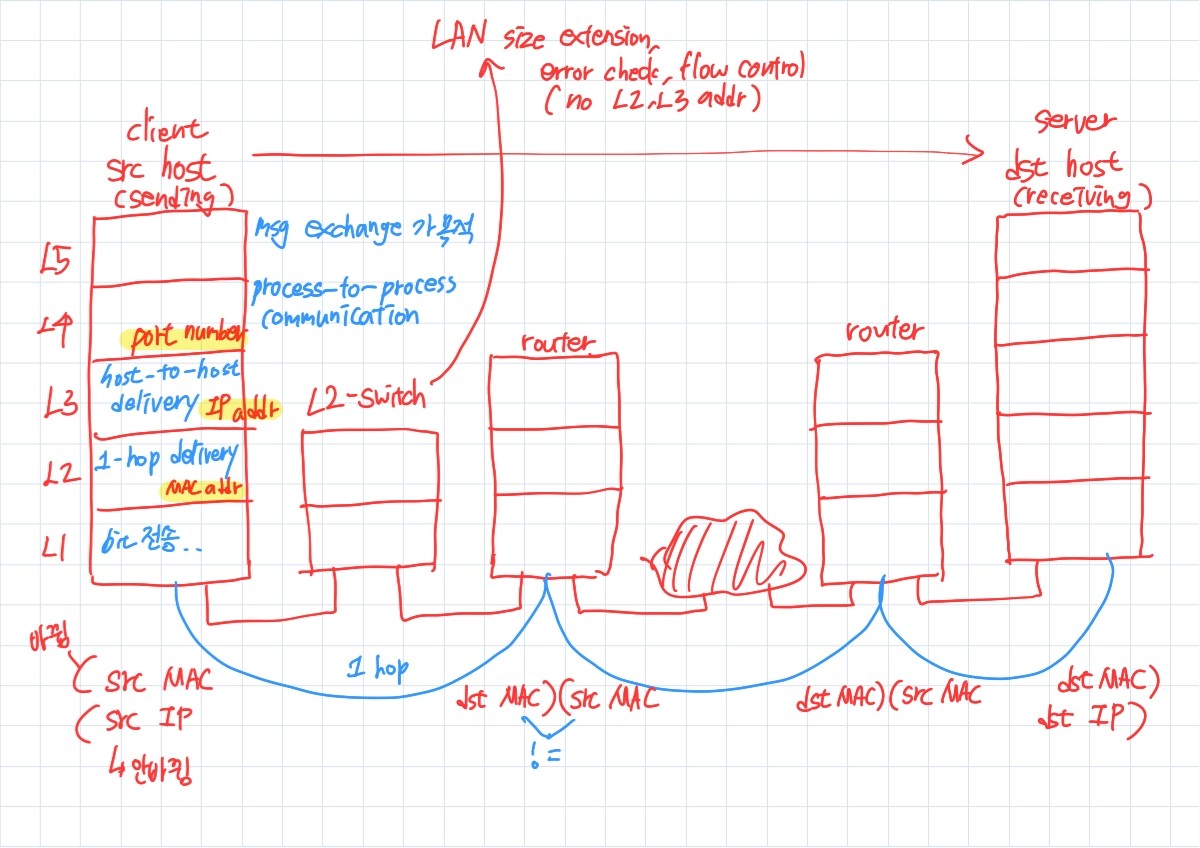

5-Layer Internet Protocol Stach

  • Application (L5): supporting network applications
    • FTP, SMTP, HTTP
    • msg (Protocl Data Unit a.k.a. PDU)
  • Transport (L4): process data transer
    • TCP, UDP
    • segment (UDP는 segment X)
  • Network (L3): Routing of datagrams from source to destination
    • IP , routing protocols(BGP, OSPF, RIP)
    • datagram or packet
  • Link (L2): Data transfer btw neighboring network elements
    • Ethernet, 802.11 (Wifi), PPP
    • frame
  • Physical (L1): bits on the wire

Network Application을 P2P(peer-to-peer) 구조로 설계할 때 고려해야 할 문제

  • P2P 서버에 해당하는 peer가 사설 IP 주소 (private IP address)를 가지는 경우가 있으므로, 정상적인 서비스 동작을 위해서는 라우터에 추가 기능이 필요하다.
  • P2P의 서버(peer)는 주로 개인 호스트이므로 이 호스트가 위치한 access network가 residential network인 경우 해당 ISP의 uplink가 서비스 품질(throughput)의 bottleneck이 될 수 있다.
  • Peer들이 인터넷 곳곳에 분산(distributed)되어 있고 하나의 관리자가 운영하는 것이 아니므로 보안을 강화하기 어렵다.

Networks Security

Put malware into hosts via Internet

  • malware can get in host from:
    • virus: 기생해서 실행, 사용자 개입 필요, 컴퓨터 내 공격
    • worm: write once read many, 독자적으로 실행, 사용자 개입 필요 X, 네트워크(server, link) 공격
  • zero day attack: 소프트웨어가 출시된 후 patch가 나오기 전에 취약점을 공격하는 malware



Denial of Service (Dos)

  • attackers make resources unavailable to legitimate traffic by overwhelming resource with bogus traffic
  • infected host can be enrolled in botnet, used for DDoS attacks



Sniffing

  • Packet Sniffing
    • broadcast media
    • promiscuous network interface reads/records all packets passing by
  • IP spoofing: send packet with false source address
    • man-in-the-middle-attack
    • Solution: end-point authentication

Internet History

1961-1972

Early packet-switching principles

  • queueing theory -> packet switching -> first ARPAnet
  • NCP(Network Control Protocol first host-host protocol
  • first e-mail program : 최초의 인터넷 서비스



1972-1980

Internetworking, new and proprietary nets

  • ALOHAnet, Ethernet
  • Internetworking Principles
    • 하나의 관리자에 의해 제어되지 않는다 - decentralized control
    • 라우터들이 호스트에 전송한 패킷들에 관한 정보를 유지하지 않는다 - stateless routers
    • end-host들이 요구하는 서비스 품질을 보장하지 않는다 - best effort service model -> good for heterogeneous link
    • 갹 ISP들의 자치권(최소한의 변경으로 ISP 망 연결)을 보장한다. - minimalism, autonomy: no internal changes inquired to interconnect networks



1980-1990

New protocols, a proliferation of networks

  • TCP/IP, various application protocols
  • smtp e-mail protocol, DNS, ftp, TCP congestion control, NSFnet
    • flow control v.s. congestion control
    • 공통점: 버퍼의 overflow을 막음
    • 차이점: flow control은 receiver의 버퍼를, congestion control은 router의 버퍼를 제어



1990 - 2000's

Commercialization, the Web, new Apps

  • hypertext Web, HTML, HTTP
  • P2P file sharing, network security



2005 - present

  • smartphones and tablets
  • ubiquitous deployment of wireless and broadband access
  • social networks, content provider networks, cloud service
