12, 13. Virtualization

OS: Operating System

What is OS

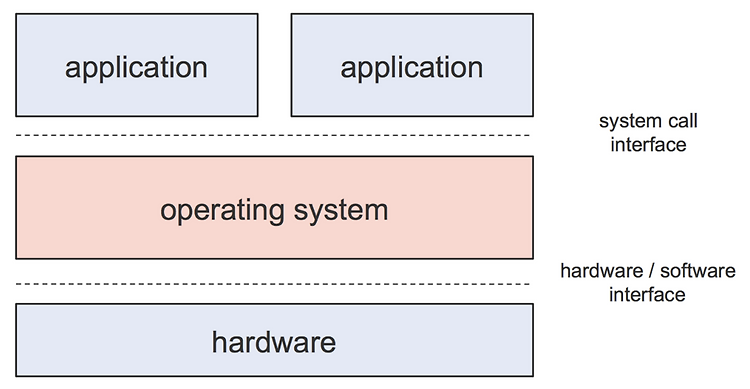

Operating System (OS)

• A piece of SW that manages and virtualizes hardware for applications
  • indirection layer btw applications and hardware
  • provide high-level interface to applications, while interact with hardware devices with low-level interfaces
  • runs privileged instruction(특권 명령) to interact with HW devices
• Applications can only execute unprivileged instructions
  • Perform system calls or faults to "trap" into OS
• A giant interrupt handler (HW interrupts, SW interrupts, system calls)
• manages shared resources
• OS needs to be privileged



Dual-Mode Operation

Dual-Mode Operation of HW

• Kernel mode: can run privileged instructions
• User mode: can only run non-privileged instructions



Interrupt

Interrupt

• A mechanism for coordination btw concurrently operating units of a computer system to respond to specific condition within a computer
• Results in transer of flow of control, forced by HW
• Hardware Interrupt: I/O devices, Timer
• Software Interrupt: Exception, System call

하드웨어 interrupt는 주로 하드웨어적인 이벤트나 조건으로 인해 발생하며, 소프트웨어 interrupt는 프로그램이나 운영 체제가 특정한 요청을 위해 명시적으로 발생시키는 것



Handling Interrupts

• Incoming interupts are disabled while the interrupt is being processed to prevent a lost interrupt
• Interrupt architecture must save the address of the interrupted instruction
• Interrupt service routine control the process
  • interrupt vector: contains the addresses of all the service routine
• If interrupt routine modifies process state
  • save the current state of the CPU on the system stack
  • restore the state before returning

---

Virtualization

Virtualization

Virtualization

• Adding another level of indirection to run OS on an abstraction of Hardware
• Virtual Machine (Guest OS = VM)
  • OS that runs on virtualized hardware resources
  • Managed by another software (VMM/Hypervisor)
• Virtual Machine Monitor (VMM = Hypervisor)
  • Software that creates and manages the execution of virtual machines
  • Runs on bare-metal hardware: 실제 하드웨어 위에서 실행



Virtualization in Cloud Computing

• You don't need to own the hardware
  • Resources are rented from a cloud
• Various providers allow creating virtual servers
  • Choose the OS and software each instance will have
  • Chosen OS will run on a large server farm
  • initiate or shut down within minutes
• pay only for what you used



Benefits of Virtualization

Server Consolidation

• Big companies such as datacenters operate many services
  • administrative best practice: run at most one service per machine
  • leads to low utilization, lots of machines, high power bills ..
• Instead, run one service per virtual machine and consolidate many VMs per physical machines
  • leads to better utilization, easier management

Other Benefits

• Isolation
  • fault / performance / software isolation
• Encapsulation
  • operate on VM by operating on file
  • can use preconfigured VM images
  • VM snapshots, clones
• Portability
  • independent of physical hardware
  • enables migration of live, running VMs
  • VMs can be migrated without application down-time
• Interposition
  • all guest actions go though monitor(VMM)
  • monitor can inspect, modify, deny operations



How Virtualization works

How Virtualization works

• OS normally run in privileged mode vs. VM OS run in user mode
• Most instructions can execute by hardware without hypervisor intervening
• Resource management handled by hypervisor
• In VM privileged instructions are "trapped" by the hypervisor and emulated
  • 👉 Trap-and-Emulate

Protection Rings

• Only Ring 0 can execute privileged instructions
• more privileged rings can access memory of less privileged ones (Ring 0 can access Ring 1 memory)
• calling across rings can only happen with hardware enforcement



Trap-and-Emulate

• guest OS cannot directly manipulate hardware with sensitive instructions
  • hand off sensitive operations to the hypervisor
  • hypervisor emulates the effect of those operations
• Performance implications
  • non-sensitive instruction: almost no overhead
  • sensitive instruction: large overhead

sensitive instruction: those can modify or depends on hardware configs

privileged instruction: those that trap when in user mode (run on kernel mode)



System Call with Virtualization

System call without Virtualization

System call with Virtualization



What if trap-and-emulate is not acceptable?

Requirements of Virtualization

• A machine is virtualizable if sensitive instructions are subset of privileged instructions

x86 is Not Virtualizable

• Not all sensitive instructions are privileged
  • Some sensitive instructions don't trap (non-privileged) but behave diffrently in kernel and user mode
  • Therea re 17 sensitive, non-privileged insructions
• If a deprivileged guest kernel attempts to run those instructions, no trap is generated and the VMM has no way of knowing it shouldn't deliver interrupts to the guest

민감한 명령어 중 일부는 특권 명령으로 간주되지 않고, 특권이 없어도 실행될 수 있습니다. 이런 경우에는 그 명령어가 trap(가로채기)되지 않고, 게스트 운영 체제가 그 명령어를 실행할 때 하이퍼바이저가 알지 못합니다.

non-privileged한 민감한 명령어를 실행하는 경우에, 게스트 운영 체제가 특권이 없는 상태에서도 해당 명령어를 실행할 수 있지만, 이로 인해 예상치 못한 결과가 발생할 수 있습니다.

Solutions to x86

Emulate

• Interpret each instruction, super slow (e.g. Virtual PC on Mac)
• Guest code is traversed, instruction classes are mapped to routines that emulate them on the target architecture

Binary translation

• Hypervisor dynamically rewrite non-virtualizable instructions to invoke hypervisor (e.g. VMware)
• Pros
  • No need to modify guest OS
  • 성능 어느정도 보장 -> since majority of the instructions still run at close-to native speed
• Cons
  • Implementing hypervisor can get tricky
  • Performance is not as good as para-virtualization or hardware-assisted virtualization

Para-virtualization

• Modify guestOS to avoid non-virtualizable instructions (e.g. Xen)
• GuestOS works with hypervisor and has some exposure to hardware
• Better performance, but need to modify guest OS

Full Virtualization: no guestOS modification

• tricky and has performance overhead



Hardware-assisted Virtualization

• Add new hardware assistance (e.g. Intel VT-x)
• VT(Virtualization Technology) extends the original x86 architecture to eliminate holes that make virtualization hard
• Operating modes
  • VMX root: fully priviliged, intended for VMM(Hypervisor) (VM Exit Mode)
  • VMX non-root: not fully priviliged, intended for guest software (VM Entry Mode)

VMX: Virtual Machine Extension = intel의 x86 가상화기술



Intel VT-x

• VM Entry (VMM -> guest)
  • Enters VMX non-root operation, loads guest state and exit criteria from VMCs
  • VMLAUNCH: used on initial entry
  • VMRESUME: used on subsequent entries
• VM Exit (guest -> VMM)
  • Enters VMX root operation
  • Saves guest state in VMCS and loads VMM state from VMCS

VMCS: Virtual Machine Control Structure



Benefits: VT helps improve VMMs

• VM reduces guest OS dependency
  • eliminates need for binary patching/translation
  • facilitates support for legacy OS
• VT improves robustness
  • eliminates need for complex SW techniques
  • simpler and smaller VMMS & trusted-computing base
• VT improves performance
  • 불필요한 guest, VMM trasition 줄임

---

Hypervisor

VMM (Hypervisor)

Virtual Machine Monitor (VMM = Hypervisor)

• Software that supports VM
• VMM determines how to map virtual resources to physical resources
• Phsycal resource may be time-shared, partitioned, or emulated in software
• VMM is much smaller than a traditional OS

VMM Overhead

• VMM overhead depends on the workload
• User-level processor-bound programs: zero-virtualization overhead
  • runs at native speeds since OS rare invoked (e.x. SPEC benchmarks: arithmetic operations)
• I/O-intensive(OS-intensive) workloads: high virtualization overhead
  • execute many system calls and privileged instructions
  • low processor utilization since waiting for I/O
    • Process virtualization can be hidden, so low virtualization overhead



Hypervisor Types



Type 1: Hypervisor runs directly on hardware

• guest OS traps on privileged instructions
• provides its own device drivers and services
• ex. Xen, Microsoft Hyper-V

Type 2: Hypervisor runs on OS

• type 2 hypervisor does binary translation
• leverages device drivers and services of a host OS
• ex. VMware Workstation, KVM, QEMU, Parawllels



Xen

Xen

• Para-virtualization
  • required less than 2% of the total lines of code to be modified
  • Pros: better performance on x86, simplifications in VM implementation
  • Cons: must modify the guest OS (but not its applications)
• Reduce the privilege of the OS
  • hypervisor runs with full privilege (ring 0), OS runs in righ 1, applications in ring 3
  • Xen must intercept interrupts and convert them to events posted to shared region with OS
  • Expose real resource availability to enable OS to optimize behavior (guestOS에게 실제 HW resource에 대한 정보 제공)

Domain 0

• Run the VMM management at user level
• Given special access to control interface for platform management
• Has back-end device drivers

Domain 0: Xen 하이퍼바이저 위에서 실행되는 특정한 가상 머신으로, 주로 다른 가상 머신들을 관리하고 제어하는데 사용됩니다.

Ring 0: x86 아키텍처에서 CPU의 특권 레벨 중 하나로, 커널 모드라고도 합니다. 이 레벨에서는 커널이 실행되고, 모든 특권적인 명령어와 하드웨어 리소스에 접근할 수 있습니다.



Hypercalls and Events

• Hypercalls
  • Synchronous calls from a domain to Xen
  • Allows domains to perform privileged operation via software traps
  • Similar to system call
• Events
  • Asynchronous notifications from Xen to domains
  • Replace device interrupts

More about Xen

• Performance overhead of only 2-5%
• Most popular example of para-virtualization
• Available as open source but owned by Citrix
  • modified version of Xen powers Amazon EC2
  • Widely used by web hosting companies
• Many security benefits
  • physical resource sharing with performance isolation across OS instances
  • hypervisor can isolate/contain OS security vulnerabilities
  • hypervisor has smaller attack surface: simpler API, less overall code than traditional OS



KVM and QEMU

Kernel-Based Virtual Machine (KVM)

• Full (hardware-assisted) virtualization
  • designed based on Intel VT (or AMD-V)
  • doesn't require binary translation & modification to guest OS
• Very active in Linux Community, Easy to use, Fully control, Easy for migration
• Almost default VM solution for GNU/Linux Distributions including Redhat, Debian, Ubuntu, etc.

QEMU: Device Emulatio

• QEMU is userspace process (user-level에서 동작)
• Create one thread for each virtual CPU in guest
• Basic IO devices are also emulated by QEMU
  • dynamically traslate guest instructions to host instructions
• Device access from guest is trapped by KVM -> KVM passes control to QEMU to handle IO -> QEMU injects interrupts from devices through KVM



Virtual Machine in AWS

• Amazon EC2 used to be based on Xen
• AWS Nitro: hypervisor based on KVM
  • Virtualizatio method of current EC2 generation
  • Near-metal performance
• AWS also offers actual "bare-metal" machines: with no virtualization, access directly to HW
• Different VM types are represented by AMIs
  • PV: para-virtual (Linux only)
  • HVM: hardware virtual machine (Linux and Windows)
