14. Container

Container

Disadvantages of Virtual Machines

Pros

• Full autonomy(자율성)
• Very secure
• Lower costs
• Used by all cloud providers for on demand server instances

Cons

• Not very portable since size of VMs are large
• Overhead

Container

Container

• cut down VMs used to execute code in an isolated environment
• portable and lightweight
• fully packaged software with all dependencies included
• can be used for development, training, and deployyment
• easily share containers

Linux Containers

• Run everywhere: regardless of kernel version / host distro
• Run anything: if it can run on a Linux kernel, it can run
• Lightweight VM
  • own process space / network interface
  • can run stuff as root (root권한으로 프로그램 실행 가능)
  • no device emulation (실제 하드웨어 디바이스 직접 사용)
• Container == isolated processes
  • but share kernel wit host

What Makes Containers so Small?

• Container == user space of OS
• User space: all of the code in an OS that lives outside of the kernel

---

Docker

Docker

Docker

• open source platform for building, deploying, and managing containerized applications

Docker Image

• basis of a Docker container
• represent a full application
• template like a blueprint to create a running Docker container

Docker Container

• standard unit in which the application service resides and executes

Docker Image = recipe, Docker Container = dish



Docker Engine

• creates, ships and runs Docker containers

Registry Service (Docker Hub or Docker Trusted Registry)

• cloud or server-based storage and distribution service for your images



Dockerfile

FROM alpine:latest
RUN apk update
RUN apk add nmap
ENTRYPOINT ["nmap"]
CMD ["localhost"]

FROM

• tells the daemon, which base image to use while creating our new Docker image
• you can use alpine, Ubuntu, Fedora, or any other OS image

RUN

• instructs the Docker daemon to run the given commands while creating the image
• Dockerfile can have multiple RUN commands, each of these RUN commands create a new layer in the image

ENTRYPOINT

• let your container to run the same executable every time

CMD

• set default commands and/or parameters when a docker container runs
• CMD can be overwritten from the command line via the docker run command



Multiple Containers from Same Image

• You can run multiple containers from the same image
  • Those containers are not necessarily all identical
  • You can instantiate it with different parameters using the CMD and therefore different containers will be different

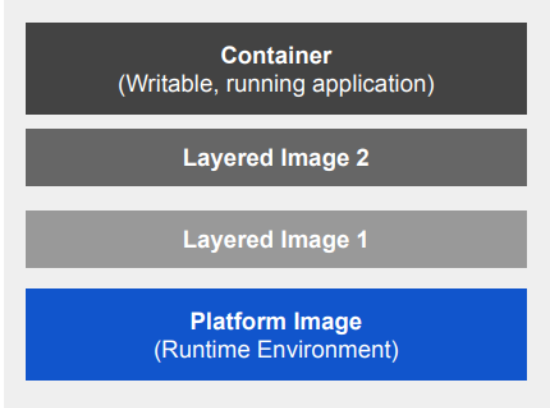

Docker Image Layering

• When execute the build command, the daemon reads the Dockerfile and creates a layer for every command

Image Layering

• A application sandbox
  • Each container is based on an image that holds necessary config data
  • When you launch a container, a writable layer is added on top of the image
• A static snapshot of the container configuration
  • Layer images are read-only
  • Each image depends on one or more parent images
• An Image that has no parent
  • Platform images define the runtime environment, packages, and utilities necessary for containerized application to run



Docker Running Commands

docker --version

• get version of Docker CLI

docker container ls
docker image les

• list all containers & images

docker build -t ac215-d1 -f Dockerfile .

• build an image based on a Dockerfile
• -t ac215-d1: name of the image
• -f Dockerfile .: name of the dockerfile and "." means look at the current working directory

docker run --rm --name ac215-d1 -ti --entrypoint /bin/bash ac215-d1

• run a docker container using the image from Docker Hub
• --rm: automatically clean up the container and remove the file system when the container exit
• --name ac215-d1: name of the container
• -ti: t - give us a terminal, i - interactive mode
• --entrypoint /bin/bash: default command to execute on startup
• ac215-d1: name of the image to use

docker system prune -a

• exit from all containers and let us clear of all images
• system: docker command for systems
• prune -a: docker command option to remove all images not referenced by any containers



Why use Containers?

• We need to handle many payloads meaning that we need different language supports
• We need to deploy on many targets meaning that we need to deploy on different OSes
• 👉 You can solve this problem by using containers



Monolithic Architecture: traditional model

Pros

• Simple to develop, test, and scale

Cons

• Difficult to maintain
• One component failure will cause whole system fail
• Difficult to create the patches for monolithic architecture
• Adapting to new technologies is challenging
• Take a long time to startup because all components needs to get started

👉 Today: Microservice Architecture



Software Development Workflow

Software Development Workflow without Container



Software Development Workflow with Container

---

Container Orchestration

Container Orchestration

Container Orchestration

• underlying platform with a set of resources
• orchestrate the connectivity btw the containers and automataically scale up and down based on the load
• whole process of automatically deploying and managin containers

Kubernetes (K8s)

• open-source system for automating deployment, scaling, and management of containerized applications
• groups containers that make up an application int logical units for easy management and discovery
